AEM 62 - Touch UI Composite Image Multifield

Goal

Create  a Touch UI Composite Multifield configuration supporting Images, widgets of type granite/ui/components/foundation/form/fileupload

For Classic UI Image Multifield check this post

For AEM 61 Touch UI Image Multifieldcheck this post

Demo | Package Install


Component Rendering




Image Multifield Structure




Nodes in CRX

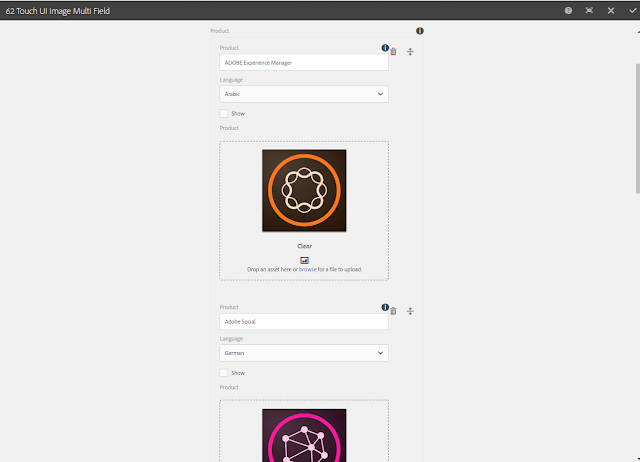

Dialog




Dialog XML

<?xml version="1.0" encoding="UTF-8"?>

<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="62 Touch UI Image Multi Field"
    sling:resourceType="cq/gui/components/authoring/dialog"
    helpPath="en/cq/current/wcm/default_components.html#Text">
<content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/foundation/container">
<layout
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/foundation/layouts/tabs"
            type="nav"/>
<items jcr:primaryType="nt:unstructured">
<company
                jcr:primaryType="nt:unstructured"
                jcr:title="Company"
                sling:resourceType="granite/ui/components/foundation/section">
<layout
                    jcr:primaryType="nt:unstructured"
                    sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns"/>
<items jcr:primaryType="nt:unstructured">
<column
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/foundation/container">
<items jcr:primaryType="nt:unstructured">
<fieldset
                                jcr:primaryType="nt:unstructured"
                                jcr:title="Products"
                                sling:resourceType="granite/ui/components/foundation/form/fieldset">
<layout
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns"/>
<items jcr:primaryType="nt:unstructured">
<column
                                        jcr:primaryType="nt:unstructured"
                                        sling:resourceType="granite/ui/components/foundation/container">
<items jcr:primaryType="nt:unstructured">
<company
                                                jcr:primaryType="nt:unstructured"
                                                sling:resourceType="granite/ui/components/foundation/form/textfield"
                                                fieldDescription="Enter Company Name"
                                                fieldLabel="Company"
                                                name="./company"/>
<product
                                                jcr:primaryType="nt:unstructured"
                                                sling:resourceType="granite/ui/components/foundation/form/multifield"
                                                class="full-width"
                                                eaem-nested=""
                                                fieldDescription="Click '+' to add a Product"
                                                fieldLabel="Product">
<field
                                                    jcr:primaryType="nt:unstructured"
                                                    sling:resourceType="granite/ui/components/foundation/form/fieldset"
                                                    name="./products">
<layout
                                                        jcr:primaryType="nt:unstructured"
                                                        sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns"
                                                        method="absolute"/>
<items jcr:primaryType="nt:unstructured">
<column
                                                            jcr:primaryType="nt:unstructured"
                                                            sling:resourceType="granite/ui/components/foundation/container">
<items jcr:primaryType="nt:unstructured">
<productName
                                                                    jcr:primaryType="nt:unstructured"
                                                                    sling:resourceType="granite/ui/components/foundation/form/textfield"
                                                                    fieldDescription="Enter Product Name"
                                                                    fieldLabel="Product"
                                                                    name="./productName"/>
<language
                                                                    jcr:primaryType="nt:unstructured"
                                                                    sling:resourceType="granite/ui/components/foundation/form/select"
                                                                    class="language"
                                                                    fieldLabel="Language"
                                                                    name="./language">
<datasource
                                                                        jcr:primaryType="nt:unstructured"
                                                                        sling:resourceType="cq/gui/components/common/datasources/languages"
                                                                        addNone="{Boolean}true"/>
</language>
<show
                                                                    jcr:primaryType="nt:unstructured"
                                                                    sling:resourceType="granite/ui/components/foundation/form/checkbox"
                                                                    name="./show"
                                                                    text="Show"
                                                                    value="yes"/>
<productImage
                                                                    jcr:primaryType="nt:unstructured"
                                                                    sling:resourceType="granite/ui/components/foundation/form/fileupload"
                                                                    autoStart="{Boolean}false"
                                                                    class="cq-droptarget"
                                                                    fieldLabel="Product"
                                                                    fileNameParameter="./productImageName"
                                                                    fileReferenceParameter="./productImageRef"
                                                                    mimeTypes="[image]"
                                                                    multiple="{Boolean}false"
                                                                    name="./productImage"
                                                                    title="Upload Image"
                                                                    uploadUrl="${suffix.path}"
                                                                    useHTML5="{Boolean}true"/>
</items>
</column>
</items>
</field>
</product>
</items>
</column>
</items>
</fieldset>
</items>
</column>
</items>
</company>
</items>
</content>
</jcr:root>

Solution

1) Login to CRXDE Lite, create folder (nt:folder) /apps/eaem-touchui-image-multifield

2) Create clientlib (type cq:ClientLibraryFolder) /apps/eaem-touchui-image-multifield/clientlib and set a property categories of String type to cq.authoring.dialog, dependencies of type String[] with value underscore

3) Create file ( type nt:file ) /apps/eaem-touchui-image-multifield/clientlib/js.txt, add the following

                         image-multifield.js

4) Create file ( type nt:file ) /apps/eaem-touchui-image-multifield/clientlib/image-multifield.js, add the following code

(function () {
    var DATA_EAEM_NESTED = "data-eaem-nested",
        CFFW = ".coral-Form-fieldwrapper",
        THUMBNAIL_IMG_CLASS = "cq-FileUpload-thumbnail-img",
        SEP_SUFFIX = "-",
        SEL_FILE_UPLOAD = ".coral-FileUpload",
        SEL_FILE_REFERENCE = ".cq-FileUpload-filereference",
        SEL_FILE_NAME = ".cq-FileUpload-filename",
        SEL_FILE_MOVEFROM = ".cq-FileUpload-filemovefrom";

    function getStringBeforeAtSign(str){
        if(_.isEmpty(str)){
            return str;
        }

        if(str.indexOf("@") != -1){
            str = str.substring(0, str.indexOf("@"));
        }

        return str;
    }

    function getStringAfterAtSign(str){
        if(_.isEmpty(str)){
            return str;
        }

        return (str.indexOf("@") != -1) ? str.substring(str.indexOf("@")) : "";
    }

    function getStringAfterLastSlash(str){
        if(!str || (str.indexOf("/") == -1)){
            return "";
        }

        return str.substr(str.lastIndexOf("/") + 1);
    }

    function getStringBeforeLastSlash(str){
        if(!str || (str.indexOf("/") == -1)){
            return "";
        }

        return str.substr(0, str.lastIndexOf("/"));
    }

    function removeFirstDot(str){
        if(str.indexOf(".") != 0){
            return str;
        }

        return str.substr(1);
    }

    function modifyJcrContent(url){
        return url.replace(new RegExp("^" + Granite.HTTP.getContextPath()), "")
                .replace("_jcr_content", "jcr:content");
    }

    function isSelectOne($field) {
        return !_.isEmpty($field) && ($field.prop("type") === "select-one");
    }

    function setSelectOne($field, value) {
        var select = $field.closest(".coral-Select").data("select");

        if (select) {
            select.setValue(value);
        }
    }

    function isCheckbox($field) {
        return !_.isEmpty($field) && ($field.prop("type") === "checkbox");
    }

    function setCheckBox($field, value) {
        $field.prop("checked", $field.attr("value") === value);
    }

    function setWidgetValue($field, value) {
        if (_.isEmpty($field)) {
            return;
        }

        if (isSelectOne($field)) {
            setSelectOne($field, value);
        } else if (isCheckbox($field)) {
            setCheckBox($field, value);
        } else {
            $field.val(value);
        }
    }

    /**
     * Removes multifield number suffix and returns just the fileRefName
     * Input: paintingRef-1, Output: paintingRef
     *
     * @param fileRefName
     * @returns {*}
     */
    function getJustName(fileRefName){
        if(!fileRefName || (fileRefName.indexOf(SEP_SUFFIX) == -1)){
            return fileRefName;
        }

        var value = fileRefName.substring(0, fileRefName.lastIndexOf(SEP_SUFFIX));

        if(fileRefName.lastIndexOf(SEP_SUFFIX) + SEP_SUFFIX.length + 1 == fileRefName.length){
            return value;
        }

        return value + fileRefName.substring(fileRefName.lastIndexOf(SEP_SUFFIX) + SEP_SUFFIX.length + 1);
    }

    function getMultiFieldNames($multifields){
        var mNames = {}, mName;

        $multifields.each(function (i, multifield) {
            mName = $(multifield).children("[name$='@Delete']").attr("name");
            mName = mName.substring(0, mName.indexOf("@"));
            mName = mName.substring(2);
            mNames[mName] = $(multifield);
        });

        return mNames;
    }

    function buildMultiField(data, $multifield, mName){
        if(_.isEmpty(mName) || _.isEmpty(data)){
            return;
        }

        _.each(data, function(value, key){
            if(key == "jcr:primaryType"){
                return;
            }

            $multifield.find(".js-coral-Multifield-add").click();

            _.each(value, function(fValue, fKey){
                if(fKey == "jcr:primaryType" || _.isObject(fValue)){
                    return;
                }

                var $field = $multifield.find("[name='./" + fKey + "']").last();

                if(_.isEmpty($field)){
                    return;
                }

                setWidgetValue($field, fValue);
            });
        });
    }

    function buildImageField($multifield, mName){
        $multifield.find(".coral-FileUpload:last").each(function () {
            var $element = $(this), widget = $element.data("fileUpload"),
                resourceURL = $element.parents("form.cq-dialog").attr("action"),
                counter = $multifield.find(SEL_FILE_UPLOAD).length;

            if (!widget) {
                return;
            }

            var fuf = new Granite.FileUploadField(widget, resourceURL);

            addThumbnail(fuf, mName, counter);
        });
    }

    function addThumbnail(imageField, mName, counter){
        var $element = imageField.widget.$element,
            $thumbnail = $element.find("." + THUMBNAIL_IMG_CLASS),
            thumbnailDom;

        $thumbnail.empty();

        $.ajax({
            url: imageField.resourceURL + ".2.json",
            cache: false
        }).done(handler);

        function handler(data){
            var fName = getJustName(getStringAfterLastSlash(imageField.fieldNames.fileName)),
                fRef = getJustName(getStringAfterLastSlash(imageField.fieldNames.fileReference));

            if(isFileNotFilled(data, counter, fRef)){
                return;
            }

            var fileName = data[mName][counter][fName],
                fileRef = data[mName][counter][fRef];

            if (!fileRef) {
                return;
            }

            if (imageField._hasImageMimeType()) {
                imageField._appendThumbnail(fileRef, $thumbnail);
            }

            var $fileName = $element.find("[name=\"" + imageField.fieldNames.fileName + "\"]"),
                $fileRef = $element.find("[name=\"" + imageField.fieldNames.fileReference + "\"]");

            $fileRef.val(fileRef);
            $fileName.val(fileName);
        }

        function isFileNotFilled(data, counter, fRef){
            return _.isEmpty(data[mName])
                    || _.isEmpty(data[mName][counter])
                    || _.isEmpty(data[mName][counter][fRef])
        }
    }

    //reads multifield data from server, creates the nested composite multifields and fills them
    function addDataInFields() {
        $(document).on("dialog-ready", function() {
            var $multifields = $("[" + DATA_EAEM_NESTED + "]");

            if(_.isEmpty($multifields)){
                return;
            }

            workaroundFileInputPositioning($multifields);

            var mNames = getMultiFieldNames($multifields),
                $form = $(".cq-dialog"),
                actionUrl = $form.attr("action") + ".infinity.json";

            $.ajax(actionUrl).done(postProcess);

            function postProcess(data){
                _.each(mNames, function($multifield, mName){
                    $multifield.on("click", ".js-coral-Multifield-add", function () {
                        buildImageField($multifield, mName);
                    });

                    buildMultiField(data[mName], $multifield, mName);
                });
            }
        });
    }

    function workaroundFileInputPositioning($multifields){
        //to workaround the .coral-FileUpload-input positioning issue
        $multifields.find(".js-coral-Multifield-add")
                    .css("position" ,"relative");
    }

    function collectImageFields($form, $fieldSet, counter){
        var $fields = $fieldSet.children().children(CFFW).not(function(index, ele){
            return $(ele).find(SEL_FILE_UPLOAD).length == 0;
        });

        $fields.each(function (j, field) {
            var $field = $(field),
                $widget = $field.find(SEL_FILE_UPLOAD).data("fileUpload");

            if(!$widget){
                return;
            }

            var prefix = $fieldSet.data("name") + "/" + (counter + 1) + "/",

                $fileRef = $widget.$element.find(SEL_FILE_REFERENCE),
                refPath = prefix + getJustName($fileRef.attr("name")),

                $fileName = $widget.$element.find(SEL_FILE_NAME),
                namePath = prefix + getJustName($fileName.attr("name")),

                $fileMoveRef = $widget.$element.find(SEL_FILE_MOVEFROM),
                moveSuffix =   $widget.inputElement.attr("name") + "/" + new Date().getTime()
                                        + SEP_SUFFIX + $fileName.val(),
                moveFromPath =  moveSuffix + "@MoveFrom";

            $('<input />').attr('type', 'hidden').attr('name', refPath)
                .attr('value', $fileRef.val() || ($form.attr("action") + removeFirstDot(moveSuffix)))
                .appendTo($form);

            $('<input />').attr('type', 'hidden').attr('name', namePath)
                .attr('value', $fileName.val()).appendTo($form);

            $('<input />').attr('type', 'hidden').attr('name', moveFromPath)
                .attr('value', modifyJcrContent($fileMoveRef.val())).appendTo($form);

            $field.remove();
        });
    }

    function collectNonImageFields($form, $fieldSet, counter){
        var $fields = $fieldSet.children().children(CFFW).not(function(index, ele){
            return $(ele).find(SEL_FILE_UPLOAD).length > 0;
        });

        $fields.each(function (j, field) {
            fillValue($form, $fieldSet.data("name"), $(field).find("[name]"), (counter + 1));
        });
    }

    function fillValue($form, fieldSetName, $field, counter){
        var name = $field.attr("name"), value;

        if (!name) {
            return;
        }

        //strip ./
        if (name.indexOf("./") == 0) {
            name = name.substring(2);
        }

        value = $field.val();

        if (isCheckbox($field)) {
            value = $field.prop("checked") ? $field.val() : "";
        }

        //remove the field, so that individual values are not POSTed
        $field.remove();

        $('<input />').attr('type', 'hidden')
            .attr('name', fieldSetName + "/" + counter + "/" + name)
            .attr('value', value)
            .appendTo($form);
    }

    //collect data from widgets in multifield and POST them to CRX
    function collectDataFromFields(){
        $(document).on("click", ".cq-dialog-submit", function () {
            var $multifields = $("[" + DATA_EAEM_NESTED + "]");

            if(_.isEmpty($multifields)){
                return;
            }

            var $form = $(this).closest("form.foundation-form"),
                $fieldSets;

            $multifields.each(function(i, multifield){
                $fieldSets = $(multifield).find("[class='coral-Form-fieldset']");

                $fieldSets.each(function (counter, fieldSet) {
                    collectNonImageFields($form, $(fieldSet), counter);

                    collectImageFields($form, $(fieldSet), counter);
                });
            });
        });
    }

    function overrideGranite_refreshThumbnail(){
        var prototype = Granite.FileUploadField.prototype,
            ootbFunc = prototype._refreshThumbnail;

        prototype._refreshThumbnail = function() {
            var $imageMulti = this.widget.$element.closest("[" + DATA_EAEM_NESTED + "]");

            if (!_.isEmpty($imageMulti)) {
                return;
            }

            return ootbFunc.call(this);
        }
    }

    function overrideGranite_computeFieldNames(){
        var prototype = Granite.FileUploadField.prototype,
            ootbFunc = prototype._computeFieldNames;

        prototype._computeFieldNames = function(){
            ootbFunc.call(this);

            var $imageMulti = this.widget.$element.closest("[" + DATA_EAEM_NESTED + "]");

            if(_.isEmpty($imageMulti)){
                return;
            }

            var fieldNames = {},
                fileFieldName = $imageMulti.find("input[type=file]").attr("name"),
                counter = $imageMulti.find(SEL_FILE_UPLOAD).length;

            _.each(this.fieldNames, function(value, key){
                if(value.indexOf("./jcr:") == 0){
                    fieldNames[key] = value;
                }else if(key == "tempFileName" || key == "tempFileDelete"){
                    value = value.substring(0, value.indexOf(".sftmp")) + getStringAfterAtSign(value);
                    fieldNames[key] = fileFieldName + removeFirstDot(getStringBeforeAtSign(value))
                                        + SEP_SUFFIX + counter + ".sftmp" + getStringAfterAtSign(value);
                }else{
                    fieldNames[key] = getStringBeforeAtSign(value) + SEP_SUFFIX
                                                    + counter + getStringAfterAtSign(value);
                }
            });

            this.fieldNames = fieldNames;

            this._tempFilePath = getStringBeforeLastSlash(this._tempFilePath);
            this._tempFilePath = getStringBeforeLastSlash(this._tempFilePath) + removeFirstDot(fieldNames.tempFileName);
        }
    }

    function performOverrides(){
        overrideGranite_computeFieldNames();
        overrideGranite_refreshThumbnail();
    }

    $(document).ready(function () {
        addDataInFields();
        collectDataFromFields();
    });

    performOverrides();
})();
