AEM 64 - Touch UI RTE (Rich Text Editor) Dialog Color Picker Plugin

Goal

Touch UI Color Picker Plugin for RTE (Rich Text Editor) Dialog - /libs/cq/gui/components/authoring/dialog/richtext

For a similar extension on 63 check this post, 62 check this post, 61 check this post

For demo purposes, dialog of core text component v2 was modified to add the color picker configuration - /apps/core/wcm/components/text/v2/text/cq:dialog/content/items/tabs/items/properties/items/columns/items/column/items/text/rtePlugins

Demo | Package Install | Github

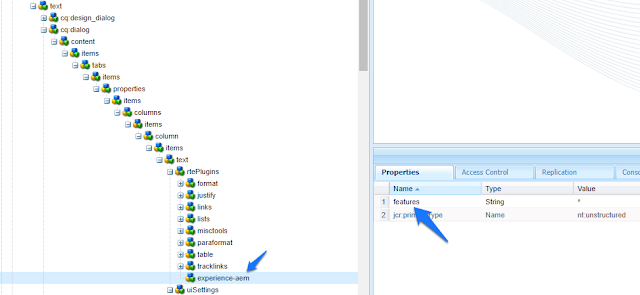

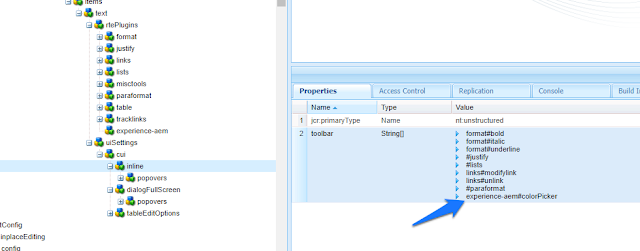

Plugin Configuration









Color Picker

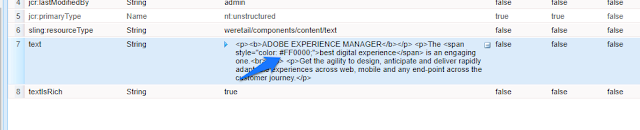

Color applied to text

Solution

1) Login to CRXDE Lite, add nt:folder /apps/eaem-touchui-dialog-rte-color-picker

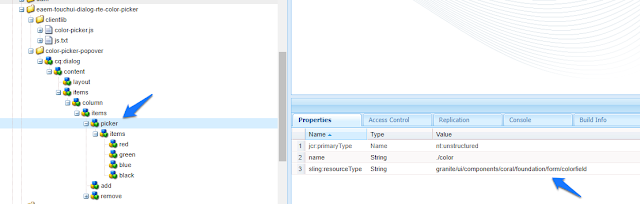

2) To show the color picker in a dialog create /apps/eaem-touchui-dialog-rte-color-picker/color-picker-popover of type sling:Folder and /apps/eaem-touchui-dialog-rte-color-picker/color-picker-popover/cq:dialog of type nt:unstructured

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
             xmlns:cq="http://www.day.com/jcr/cq/1.0"
             xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Color Picker"
    sling:resourceType="cq/gui/components/authoring/dialog">
<content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/foundation/container">
<layout
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns"
            margin="{Boolean}false"/>
<items jcr:primaryType="nt:unstructured">
<column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/foundation/container">
<items jcr:primaryType="nt:unstructured">
<picker
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/colorfield"
                        name="./color">
<items jcr:primaryType="nt:unstructured">
<red
                                jcr:primaryType="nt:unstructured"
                                name="Red"
                                value="#FF0000"/>
<green
                                jcr:primaryType="nt:unstructured"
                                name="Green"
                                value="#00FF00"/>
<blue
                                jcr:primaryType="nt:unstructured"
                                name="Blue"
                                value="#0000FF"/>
<black
                                jcr:primaryType="nt:unstructured"
                                name="Black"
                                value="#000000"/>
</items>
</picker>
<add
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/foundation/button"
                        class="coral-Button--primary"
                        id="EAEM_CP_ADD_COLOR"
                        text="Add Color"/>
<remove
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/foundation/button"
                        class="coral-Button--warning"
                        id="EAEM_CP_REMOVE_COLOR"
                        text="Remove Color"/>
</items>
</column>
</items>
</content>
</jcr:root>


3) Create clientlib (cq:ClientLibraryFolder) /apps/eaem-touchui-dialog-rte-color-picker/clientlib set property categories to cq.authoring.dialog.all and dependencies to [underscore]

4) Create file (nt:file) /apps/eaem-touchui-dialog-rte-color-picker/clientlib/js.txt, add the following content

                   color-picker.js


5) Create file (nt:file) /apps/eaem-touchui-dialog-rte-color-picker/clientlib/color-picker.js, add the following code

(function($, CUI){
    var GROUP = "experience-aem",
        COLOR_PICKER_FEATURE = "colorPicker",
        TCP_DIALOG = "eaemTouchUIColorPickerDialog",
        PICKER_NAME_IN_POPOVER = "color",
        REQUESTER = "requester",
        PICKER_URL = "/apps/eaem-touchui-dialog-rte-color-picker/color-picker-popover/cq:dialog.html";

    addPluginToDefaultUISettings();

    addDialogTemplate();

    var EAEMColorPickerDialog = new Class({
        extend: CUI.rte.ui.cui.AbstractDialog,

        toString: "EAEMColorPickerDialog",

        initialize: function(config) {
            this.exec = config.execute;
        },

        getDataType: function() {
            return TCP_DIALOG;
        }
    });

    var TouchUIColorPickerPlugin = new Class({
        toString: "TouchUIColorPickerPlugin",

        extend: CUI.rte.plugins.Plugin,

        pickerUI: null,

        getFeatures: function() {
            return [ COLOR_PICKER_FEATURE ];
        },

        initializeUI: function(tbGenerator) {
            var plg = CUI.rte.plugins;

            if (!this.isFeatureEnabled(COLOR_PICKER_FEATURE)) {
                return;
            }

            this.pickerUI = tbGenerator.createElement(COLOR_PICKER_FEATURE, this, false, { title: "Color Picker" });
            tbGenerator.addElement(GROUP, plg.Plugin.SORT_FORMAT, this.pickerUI, 10);

            var groupFeature = GROUP + "#" + COLOR_PICKER_FEATURE;
            tbGenerator.registerIcon(groupFeature, "textColor");
        },

        execute: function (id, value, envOptions) {
            if(!isValidSelection()){
                return;
            }

            var context = envOptions.editContext,
                selection = CUI.rte.Selection.createProcessingSelection(context),
                ek = this.editorKernel,
                startNode = selection.startNode;

            if ( (selection.startOffset === startNode.length) && (startNode != selection.endNode)) {
                startNode = startNode.nextSibling;
            }

            var tag = CUI.rte.Common.getTagInPath(context, startNode, "span"), plugin = this, dialog,
                color = $(tag).css("color"),
                dm = ek.getDialogManager(),
                $container = CUI.rte.UIUtils.getUIContainer($(context.root)),
                propConfig = {
'parameters': {
'command': this.pluginId + '#' + COLOR_PICKER_FEATURE
                    }
                };

            if(this.eaemColorPickerDialog){
                dialog = this.eaemColorPickerDialog;
            }else{
                dialog = new EAEMColorPickerDialog();

                dialog.attach(propConfig, $container, this.editorKernel);

                dialog.$dialog.css("-webkit-transform", "scale(0.9)").css("-webkit-transform-origin", "0 0")
                    .css("-moz-transform", "scale(0.9)").css("-moz-transform-origin", "0px 0px");

                dialog.$dialog.find("iframe").attr("src", getPickerIFrameUrl(color));

                this.eaemColorPickerDialog = dialog;
            }

            dm.show(dialog);

            registerReceiveDataListener(receiveMessage);

            function isValidSelection(){
                var winSel = window.getSelection();
                return winSel && winSel.rangeCount == 1 && winSel.getRangeAt(0).toString().length > 0;
            }

            function getPickerIFrameUrl(color){
                var url = PICKER_URL + "?" + REQUESTER + "=" + GROUP;

                if(!_.isEmpty(color)){
                    url = url + "&" + PICKER_NAME_IN_POPOVER + "=" + color;
                }

                return url;
            }

            function removeReceiveDataListener(handler) {
                if (window.removeEventListener) {
                    window.removeEventListener("message", handler);
                } else if (window.detachEvent) {
                    window.detachEvent("onmessage", handler);
                }
            }

            function registerReceiveDataListener(handler) {
                if (window.addEventListener) {
                    window.addEventListener("message", handler, false);
                } else if (window.attachEvent) {
                    window.attachEvent("onmessage", handler);
                }
            }

            function receiveMessage(event) {
                if (_.isEmpty(event.data)) {
                    return;
                }

                var message = JSON.parse(event.data),
                    action;

                if (!message || message.sender !== GROUP) {
                    return;
                }

                action = message.action;

                if (action === "submit") {
                    if (!_.isEmpty(message.data)) {
                        ek.relayCmd(id, message.data);
                    }
                }else if(action === "remove"){
                    ek.relayCmd(id);
                }else if(action === "cancel"){
                    plugin.eaemColorPickerDialog = null;
                }

                dialog.hide();

                removeReceiveDataListener(receiveMessage);
            }
        },

        //to mark the icon selected/deselected
        updateState: function(selDef) {
            var hasUC = this.editorKernel.queryState(COLOR_PICKER_FEATURE, selDef);

            if (this.pickerUI != null) {
                this.pickerUI.setSelected(hasUC);
            }
        }
    });

    CUI.rte.plugins.PluginRegistry.register(GROUP,TouchUIColorPickerPlugin);

    var TouchUIColorPickerCmd = new Class({
        toString: "TouchUIColorPickerCmd",

        extend: CUI.rte.commands.Command,

        isCommand: function(cmdStr) {
            return (cmdStr.toLowerCase() == COLOR_PICKER_FEATURE);
        },

        getProcessingOptions: function() {
            var cmd = CUI.rte.commands.Command;
            return cmd.PO_SELECTION | cmd.PO_BOOKMARK | cmd.PO_NODELIST;
        },

        _getTagObject: function(color) {
            return {
"tag": "span",
"attributes": {
"style" : "color: " + color
                }
            };
        },

        execute: function (execDef) {
            var color = execDef.value ? execDef.value[PICKER_NAME_IN_POPOVER] : undefined,
                selection = execDef.selection,
                nodeList = execDef.nodeList;

            if (!selection || !nodeList) {
                return;
            }

            var common = CUI.rte.Common,
                context = execDef.editContext,
                tagObj = this._getTagObject(color);

            //if no color value passed, assume delete and remove color
            if(_.isEmpty(color)){
                nodeList.removeNodesByTag(execDef.editContext, tagObj.tag, undefined, true);
                return;
            }

            var tags = common.getTagInPath(context, selection.startNode, tagObj.tag);

            //remove existing color before adding new color
            if (tags != null) {
                nodeList.removeNodesByTag(execDef.editContext, tagObj.tag, undefined, true);
            }

            nodeList.surround(execDef.editContext, tagObj.tag, tagObj.attributes);
        }
    });

    CUI.rte.commands.CommandRegistry.register(COLOR_PICKER_FEATURE, TouchUIColorPickerCmd);

    function addPluginToDefaultUISettings(){
        var toolbar = CUI.rte.ui.cui.DEFAULT_UI_SETTINGS.inline.toolbar;
        toolbar.splice(3, 0, GROUP + "#" + COLOR_PICKER_FEATURE);

        toolbar = CUI.rte.ui.cui.DEFAULT_UI_SETTINGS.fullscreen.toolbar;
        toolbar.splice(3, 0, GROUP + "#" + COLOR_PICKER_FEATURE);
    }

    function addDialogTemplate(){
        var url = PICKER_URL + "?" + REQUESTER + "=" + GROUP;

        var html = "<iframe width='600px' height='500px' frameBorder='0' src='" + url + "'></iframe>";

        if(_.isUndefined(CUI.rte.Templates)){
            CUI.rte.Templates = {};
        }

        if(_.isUndefined(CUI.rte.templates)){
            CUI.rte.templates = {};
        }

        CUI.rte.templates['dlg-' + TCP_DIALOG] = CUI.rte.Templates['dlg-' + TCP_DIALOG] = Handlebars.compile(html);
    }
}(jQuery, window.CUI,jQuery(document)));

(function($, $document){
    var SENDER = "experience-aem",
        REQUESTER = "requester",
        COLOR = "color",
        ADD_COLOR_BUT = "#EAEM_CP_ADD_COLOR",
        REMOVE_COLOR_BUT = "#EAEM_CP_REMOVE_COLOR";

    if(queryParameters()[REQUESTER] !== SENDER ){
        return;
    }

    $(function(){
        _.defer(stylePopoverIframe);
    });

   function queryParameters() {
        var result = {}, param,
            params = document.location.search.split(/\?|\&/);

        params.forEach( function(it) {
            if (_.isEmpty(it)) {
                return;
            }

            param = it.split("=");
            result[param[0]] = param[1];
        });

        return result;
    }

    function stylePopoverIframe(){
        var queryParams = queryParameters(),
            $dialog = $("coral-dialog");

        if(_.isEmpty($dialog)){
            return;
        }

        $dialog.css("overflow", "hidden").css("background-color", "#fff");

        $dialog[0].open = true;

        var $addColor = $dialog.find(ADD_COLOR_BUT),
            $removeColor = $dialog.find(REMOVE_COLOR_BUT),
            color = queryParameters()[COLOR],
            $colorPicker = $document.find("coral-colorinput");

        if(!_.isEmpty(color)){
            color = decodeURIComponent(color);

            if(color.indexOf("rgb") == 0){
                color = CUI.util.color.RGBAToHex(color);
            }

            $colorPicker[0].value = color;
        }

        adjustHeader($dialog);

        $colorPicker.css("margin-bottom", "285px");

        $(ADD_COLOR_BUT).css("margin-left", "220px");

        $addColor.click(sendDataMessage);

        $removeColor.click(sendRemoveMessage);
    }

    function adjustHeader($dialog){
        var $header = $dialog.css("background-color", "#fff").find(".coral3-Dialog-header");

        $header.find(".cq-dialog-submit").remove();

        $header.find(".cq-dialog-cancel").click(function(event){
            event.preventDefault();

            $dialog.remove();

            sendCancelMessage();
        });
    }

    function sendCancelMessage(){
        var message = {
            sender: SENDER,
            action: "cancel"
        };

        parent.postMessage(JSON.stringify(message), "*");
    }

    function sendRemoveMessage(){
        var message = {
            sender: SENDER,
            action: "remove"
        };

        parent.postMessage(JSON.stringify(message), "*");
    }

    function sendDataMessage(){
        var message = {
            sender: SENDER,
            action: "submit",
            data: {}
        }, $dialog, color;

        $dialog = $(".cq-dialog");

        color = $dialog.find("[name='./" + COLOR + "']").val();

        if(color && color.indexOf("rgb") >= 0){
            color = CUI.util.color.RGBAToHex(color);
        }

        message.data[COLOR] = color;

        parent.postMessage(JSON.stringify(message), "*");
    }
})(jQuery, jQuery(document));
