Goal
Extend the Link Dialog of Touch UI Rich Text Editor to add a Coral Select widget for showing named anchor links on selected page to create deep links
Demo | Package Install | Github

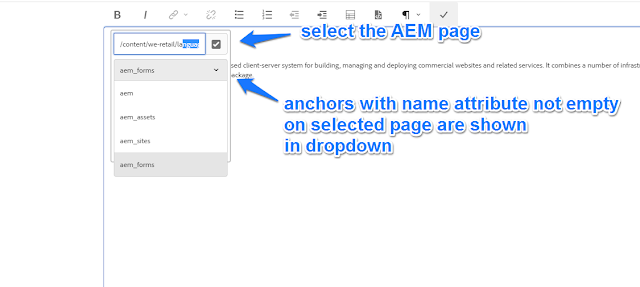

Drop down with list of Anchors
Anchors on linked page
Solution
1) Login to CRXDE Lite, create folder (nt:folder) /apps/eaem-touchui-extend-rte-select-deep-link
2) Create clientlib (type cq:ClientLibraryFolder) /apps/eaem-touchui-extend-rte-select-deep-link/clientlib and set property categories of String type to cq.authoring.dialog.all and dependencies String[] to lodash
3) Create file ( type nt:file ) /apps/eaem-touchui-extend-rte-select-deep-link/clientlib/js.txt, add the following
deep-links.js
4) Create file (type nt:file) /apps/eaem-touchui-extend-rte-select-deep-link/clientlib/deep-links.js, add the following code
(function ($) {
"use strict";
var _ = window._,
Class = window.Class,
CUI = window.CUI,
EAEM_ANCHOR_SELECT = "eaem-anchor-select",
RTE_LINK_DIALOG = "rtelinkdialog";
if(CUI.rte.ui.cui.CuiDialogHelper.eaemExtended){
return;
}
var EAEMLinkBaseDialog = new Class({
extend: CUI.rte.ui.cui.CQLinkBaseDialog,
toString: "EAEMLinkBaseDialog",
initialize: function(config) {
this.superClass.initialize.call(this, config);
var baseDialog = this;
this.$rteDialog = this.$container.find("[data-rte-dialog=link]");
var $path = this.$rteDialog.find(".rte-dialog-columnContainer:first");
$(baseDialog.getAnchorsSelect()).insertAfter($path);
$path.find("foundation-autocomplete").on("foundation-field-change", constructSelect);
function constructSelect() {
var pathField = $(this).adaptTo('foundation-field');
$.get(pathField.getValue() + ".html?wcmmode=disabled").done(successFn);
function successFn(respHtml){
var $aTags = $(respHtml).find("a"), options = [];
$aTags.each(function( i, aTag ) {
if(_.isEmpty(aTag.name)){
return;
}
options.push(aTag.name);
});
$(baseDialog.getAnchorsSelect(options)).insertAfter($path);
}
}
},
getAnchorsSelect: function(options, dValue){
$("#" + EAEM_ANCHOR_SELECT).remove();
var html = '<div class="rte-dialog-columnContainer" id="' + EAEM_ANCHOR_SELECT + '">' +
'<div class="rte-dialog-column">' +
'<coral-select class="coral-Form-field" placeholder="Select Link">';
_.each(options, function(option){
html = html + '<coral-select-item value="' + option + '"'
+ ( (dValue == option) ? " selected " : "" ) + '>' + option + '</coral-select-item>';
});
html = html + '</coral-select></div></div>';
return html;
},
dlgFromModel: function() {
if (_.isEmpty(this.objToEdit) || _.isEmpty(this.objToEdit.href)
|| (this.objToEdit.href.indexOf("#") == -1)) {
this.superClass.dlgFromModel.call(this);
return;
}
var href = this.objToEdit.href, anchor,
$path = this.$rteDialog.find(".rte-dialog-columnContainer:first");
this.objToEdit.href = href.substring(0, href.lastIndexOf("#"));
this.superClass.dlgFromModel.call(this);
anchor = href.substring(href.lastIndexOf("#") + 1);
$.get(href + ".html?wcmmode=disabled").done($.proxy(successFn, this));
function successFn(respHtml){
var $aTags = $(respHtml).find("a"), options = [];
$aTags.each(function( i, aTag ) {
if(_.isEmpty(aTag.name)){
return;
}
options.push(aTag.name);
});
$(this.getAnchorsSelect(options, anchor)).insertAfter($path);
}
},
dlgToModel: function() {
this.superClass.dlgToModel.call(this);
var anchorSelect = this.$dialog.find("#" + EAEM_ANCHOR_SELECT + ">* coral-select");
if(_.isEmpty(anchorSelect)){
return;
}
var aVal = anchorSelect.val();
if (_.isEmpty(aVal)) {
return;
}
this.objToEdit.href = this.objToEdit.href + "#" + aVal;
}
});
CUI.rte.ui.cui.CuiDialogHelper = new Class({
extend: CUI.rte.ui.cui.CuiDialogHelper,
toString: "EAEMCuiDialogHelper",
instantiateDialog: function(dialogConfig) {
var type = dialogConfig.type;
if(type !== RTE_LINK_DIALOG){
this.superClass.instantiateDialog.call(this, dialogConfig);
return;
}
var $editable = $(this.editorKernel.getEditContext().root),
$container = CUI.rte.UIUtils.getUIContainer($editable),
dialog = new EAEMLinkBaseDialog();
dialog.attach(dialogConfig, $container, this.editorKernel);
return dialog;
}
});
CUI.rte.ui.cui.CuiDialogHelper.eaemExtended = true;
})(jQuery);
