Goal
Add an RTE plugin eaemTextFont to apply size, color, background color to the text in content fragment editor
Demo | Package Install | Github
Minimized
Toolbar Plugin

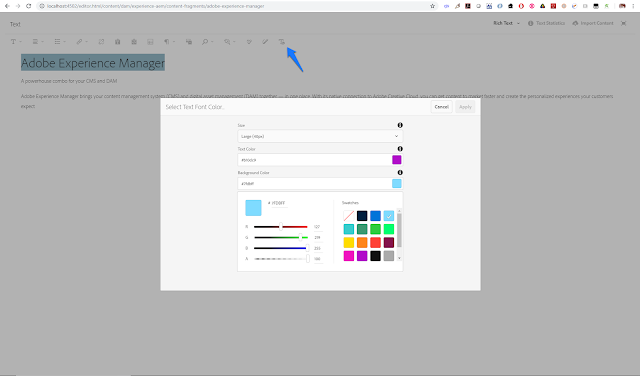

Maximized
Saved in CRX
Solution
1) Login to CRXDE Lite, create folder (nt:folder) /apps/eaem-touchui-cfm-font-size-plugin
2) Create a Font selector cq:Page /apps/eaem-touchui-cfm-font-size-plugin/font-selector with the following code
<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:granite="http://www.adobe.com/jcr/granite/1.0"
xmlns:cq="http://www.day.com/jcr/cq/1.0"
xmlns:jcr="http://www.jcp.org/jcr/1.0"
xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
jcr:primaryType="cq:Page">
<jcr:content
jcr:mixinTypes="[sling:VanityPath]"
jcr:primaryType="nt:unstructured"
jcr:title="EAEM Font Selector"
sling:resourceType="granite/ui/components/coral/foundation/page">
<head jcr:primaryType="nt:unstructured">
<favicon
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/page/favicon"/>
<viewport
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/admin/page/viewport"/>
<clientlibs
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/includeclientlibs"
categories="[coralui3,granite.ui.coral.foundation,granite.ui.shell,dam.gui.admin.coral, eaem-cfm.rte.plugin]"/>
</head>
<body
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/page/body">
<items jcr:primaryType="nt:unstructured">
<form
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form"
class="foundation-form content-container"
maximized="{Boolean}true"
style="vertical">
<items jcr:primaryType="nt:unstructured">
<wizard
jcr:primaryType="nt:unstructured"
jcr:title="Select Text Font Color..."
sling:resourceType="granite/ui/components/coral/foundation/wizard">
<items jcr:primaryType="nt:unstructured">
<text
jcr:primaryType="nt:unstructured"
jcr:title="Select Text Font Color..."
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<fixedColumns
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns"
margin="{Boolean}true">
<items jcr:primaryType="nt:unstructured">
<column
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<fontSize
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/select"
fieldDescription="Select text size"
fieldLabel="Size"
name="./size">
<items jcr:primaryType="nt:unstructured">
<def
jcr:primaryType="nt:unstructured"
text="Select Size"
value=""/>
<small
jcr:primaryType="nt:unstructured"
text="Small (15px)"
value="15px"/>
<medium
jcr:primaryType="nt:unstructured"
text="Medium (30px)"
value="30px"/>
<large
jcr:primaryType="nt:unstructured"
text="Large (40px)"
value="40px"/>
</items>
</fontSize>
<color
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/colorfield"
fieldDescription="Select text color"
fieldLabel="Text Color"
name="./color"
showProperties="{Boolean}true"/>
<bgColor
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/colorfield"
fieldDescription="Select background color"
fieldLabel="Background Color"
name="./bgColor"
showProperties="{Boolean}true"/>
</items>
</column>
</items>
</fixedColumns>
</items>
<parentConfig jcr:primaryType="nt:unstructured">
<prev
granite:class="foundation-wizard-control"
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/anchorbutton"
text="Cancel">
<granite:data
jcr:primaryType="nt:unstructured"
foundation-wizard-control-action="cancel"/>
</prev>
<next
granite:class="foundation-wizard-control"
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/button"
disabled="{Boolean}true"
text="Apply"
type="submit"
variant="primary">
<granite:data
jcr:primaryType="nt:unstructured"
foundation-wizard-control-action="next"/>
</next>
</parentConfig>
</text>
</items>
</wizard>
</items>
</form>
</items>
</body>
</jcr:content>
</jcr:root>
3) Create clientlib (type cq:ClientLibraryFolder) /apps/eaem-touchui-cfm-font-size-plugin/clientlib and set property categories of String[] type to [dam.cfm.authoring.contenteditor.v2, eaem-cfm.rte.plugin] and dependencies String[] to [lodash]
4) Create file ( type nt:file ) /apps/eaem-touchui-cfm-font-size-plugin/clientlib/css.txt, add the following
cfm-rte-font-size-plugin.css
5) Create file (type nt:file) /apps/eaem-touchui-cfm-font-size-plugin/clientlib/cfm-rte-font-size-plugin.css, add the following code
.eaem-cfm-font-size {
width: 50%;
margin-left: -50%;
height: 53%;
margin-top: -50%;
box-sizing: content-box;
z-index: 10100;
}
.eaem-cfm-font-size > iframe {
width: 100%;
height: 100%;
border: 1px solid #888;
}
6) Create file ( type nt:file ) /apps/eaem-touchui-cfm-font-size-plugin/clientlib/js.txt, add the following
cfm-rte-font-size-plugin.js
7) Create file (type nt:file) /apps/eaem-touchui-cfm-font-size-plugin/clientlib/cfm-rte-font-size-plugin.js, add the following code
(function ($, $document) {
var EAEM_PLUGIN_ID = "eaemfont",
EAEM_TEXT_FONT_FEATURE = "eaemTextFont",
EAEM_TEXT_FONT_ICON = EAEM_PLUGIN_ID + "#" + EAEM_TEXT_FONT_FEATURE,
CANCEL_CSS = "[data-foundation-wizard-control-action='cancel']",
FONT_SELECTOR_URL = "/apps/eaem-touchui-cfm-font-size-plugin/font-selector.html",
SENDER = "experience-aem", REQUESTER = "requester", $eaemFontPicker,
url = document.location.pathname;
if( url.indexOf("/editor.html") == 0 ){
extendStyledTextEditor();
registerPlugin();
}else if(url.indexOf(FONT_SELECTOR_URL) == 0){
handlePicker();
}
function handlePicker(){
$document.on("foundation-contentloaded", fillDefaultValues);
$document.on("click", CANCEL_CSS, sendCancelMessage);
$document.submit(sentTextAttributes);
}
function setWidgetValue(form, selector, value){
Coral.commons.ready(form.querySelector(selector), function (field) {
field.value = _.isEmpty(value) ? "" : decodeURIComponent(value);
});
}
function rgbToHex(color){
if(_.isEmpty(color)){
return color;
}
if(color.indexOf("rgb") == 0){
color = CUI.util.color.RGBAToHex(color);
}
return color;
}
function fillDefaultValues(){
var queryParams = queryParameters(),
form = $("form")[0];
setWidgetValue(form, "[name='./color']", queryParams.color);
setWidgetValue(form, "[name='./size']", queryParams.size);
setWidgetValue(form, "[name='./bgColor']", queryParams.bgColor);
}
function sentTextAttributes(){
var message = {
sender: SENDER,
action: "submit",
data: {}
}, $form = $("form"), $field;
_.each($form.find("[name^='./']"), function(field){
$field = $(field);
message.data[$field.attr("name").substr(2)] = $field.val();
});
parent.postMessage(JSON.stringify(message), "*");
}
function queryParameters() {
var result = {}, param,
params = document.location.search.split(/\?|\&/);
params.forEach( function(it) {
if (_.isEmpty(it)) {
return;
}
param = it.split("=");
result[param[0]] = param[1];
});
return result;
}
function sendCancelMessage(){
var message = {
sender: SENDER,
action: "cancel"
};
getParent().postMessage(JSON.stringify(message), "*");
}
function getParent() {
if (window.opener) {
return window.opener;
}
return parent;
}
function closePicker(event){
event = event.originalEvent || {};
if (_.isEmpty(event.data)) {
return;
}
var message, action;
try{
message = JSON.parse(event.data);
}catch(err){
return;
}
if (!message || message.sender !== SENDER) {
return;
}
action = message.action;
if(action === "submit"){
$eaemFontPicker.eaemFontPlugin.editorKernel.execCmd(EAEM_TEXT_FONT_FEATURE, message.data);
}
var modal = $eaemFontPicker.data('modal');
modal.hide();
modal.$element.remove();
}
function extendStyledTextEditor(){
var origFn = Dam.CFM.StyledTextEditor.prototype._start;
Dam.CFM.StyledTextEditor.prototype._start = function(){
addTextFontPluginSettings(this);
origFn.call(this);
}
}
function addTextFontPluginSettings(editor){
var config = editor.$editable.data("config");
config.rtePlugins[EAEM_PLUGIN_ID] = {
features: "*"
};
config.uiSettings.cui.multieditorFullscreen.toolbar.push(EAEM_TEXT_FONT_ICON);
}
function registerPlugin(){
var EAEM_CFM_TEXT_FONT_PLUGIN = new Class({
toString: "eaemCFMTextFontPlugin",
extend: CUI.rte.plugins.Plugin,
textFontUI: null,
getFeatures: function () {
return [ EAEM_TEXT_FONT_FEATURE ];
},
notifyPluginConfig: function (pluginConfig) {
var defaults = {
tooltips: {}
};
defaults.tooltips[EAEM_TEXT_FONT_FEATURE] = {
title: "Set text font size, color, background color..."
};
CUI.rte.Utils.applyDefaults(pluginConfig, defaults);
this.config = pluginConfig;
},
initializeUI: function (tbGenerator) {
if (!this.isFeatureEnabled(EAEM_TEXT_FONT_FEATURE)) {
return;
}
this.textFontUI = new tbGenerator.createElement(EAEM_TEXT_FONT_FEATURE, this, false,
this.config.tooltips[EAEM_TEXT_FONT_FEATURE]);
tbGenerator.addElement(EAEM_TEXT_FONT_FEATURE, 999, this.textFontUI, 999);
if (tbGenerator.registerIcon) {
tbGenerator.registerIcon(EAEM_TEXT_FONT_ICON, "textColor");
}
$(window).off('message', closePicker).on('message', closePicker);
},
isValidSelection: function(){
var winSel = window.getSelection();
return winSel && winSel.rangeCount == 1 && winSel.getRangeAt(0).toString().length > 0;
},
execute: function (pluginCommand, value, envOptions) {
var context = envOptions.editContext;
if (pluginCommand != EAEM_TEXT_FONT_FEATURE) {
return;
}
if(!this.isValidSelection()){
return;
}
var selection = CUI.rte.Selection.createProcessingSelection(context),
ek = this.editorKernel, startNode = selection.startNode;
if ( (selection.startOffset === startNode.length) && (startNode != selection.endNode)) {
startNode = startNode.nextSibling;
}
var $tag = $(CUI.rte.Common.getTagInPath(context, startNode, "span")),
color, size = $tag.css("font-size");
color = this.getColorAttributes($tag);
this.showFontModal(this.getPickerIFrameUrl(size, color.color, color.bgColor));
},
getColorAttributes: function($tag){
var key, color = { color: "", bgColor : ""};
if(!$tag.attr("style")){
return color;
}
//donot use .css("color"), it returns default font color, if color is not set
var parts = $tag.attr("style").split(";");
_.each(parts, function(value){
value = value.split(":");
key = value[0] ? value[0].trim() : "";
value = value[1] ? value[1].trim() : "";
if(key == "color"){
color.color = rgbToHex(value);
}else if(key == "background-color"){
color.bgColor = rgbToHex(value);
}
});
return color;
},
showFontModal: function(url){
var self = this, $iframe = $('<iframe>'),
$modal = $('<div>').addClass('eaem-cfm-font-size coral-Modal');
$iframe.attr('src', url).appendTo($modal);
$modal.appendTo('body').modal({
type: 'default',
buttons: [],
visible: true
});
$eaemFontPicker = $modal;
$eaemFontPicker.eaemFontPlugin = self;
$modal.nextAll(".coral-Modal-backdrop").addClass("cfm-coral2-backdrop");
},
getPickerIFrameUrl: function(size, color, bgColor){
var url = Granite.HTTP.externalize(FONT_SELECTOR_URL) + "?" + REQUESTER + "=" + SENDER;
if(!_.isEmpty(color)){
url = url + "&color=" + encodeURIComponent(color);
}
if(!_.isEmpty(bgColor)){
url = url + "&bgColor=" + encodeURIComponent(bgColor);
}
if(!_.isEmpty(size)){
url = url + "&size=" + size;
}
return url;
}
});
var EAEM_CFM_TEXT_FONT_CMD = new Class({
toString: "eaemCFMTextFontCmd",
extend: CUI.rte.commands.Command,
isCommand: function (cmdStr) {
return (cmdStr.toLowerCase() == EAEM_TEXT_FONT_FEATURE);
},
getProcessingOptions: function () {
var cmd = CUI.rte.commands.Command;
return cmd.PO_SELECTION | cmd.PO_BOOKMARK | cmd.PO_NODELIST;
},
getTagObject: function(textData) {
var style = "";
if(!_.isEmpty(textData.color)){
style = "color: " + textData.color + ";";
}
if(!_.isEmpty(textData.size)){
style = style + "font-size: " + textData.size + ";";
}
if(!_.isEmpty(textData.bgColor)){
style = style + "background-color: " + textData.bgColor;
}
return {
"tag": "span",
"attributes": {
"style" : style
}
};
},
execute: function (execDef) {
var textData = execDef.value, selection = execDef.selection,
nodeList = execDef.nodeList;
if (!selection || !nodeList) {
return;
}
var common = CUI.rte.Common,
context = execDef.editContext,
tagObj = this.getTagObject(textData);
if(_.isEmpty(textData.size) && _.isEmpty(textData.color) && _.isEmpty(textData.bgColor)){
nodeList.removeNodesByTag(execDef.editContext, tagObj.tag, undefined, true);
return;
}
var tags = common.getTagInPath(context, selection.startNode, tagObj.tag);
//remove existing color before adding new color
if (tags != null) {
nodeList.removeNodesByTag(execDef.editContext, tagObj.tag, tags.attributes ? tags.attributes : undefined, true);
}
nodeList.surround(execDef.editContext, tagObj.tag, tagObj.attributes);
},
queryState: function(selectionDef, cmd) {
return false;
}
});
CUI.rte.plugins.PluginRegistry.register(EAEM_PLUGIN_ID, EAEM_CFM_TEXT_FONT_PLUGIN);
CUI.rte.commands.CommandRegistry.register(EAEM_TEXT_FONT_FEATURE, EAEM_CFM_TEXT_FONT_CMD);
}
}(jQuery, jQuery(document)));
